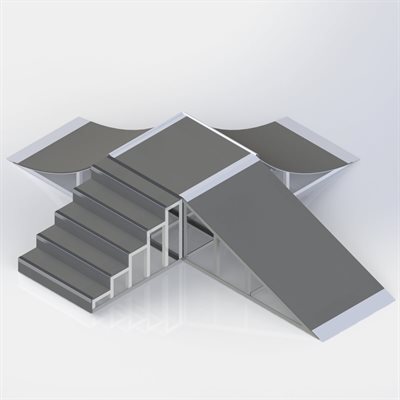

5-Shape Ramp, 223"x195"x36"

Five way ramps

Rampe cinq formes, over all dimension: 223" x 195" (5 m 66 x 4 m 95), height: 36" (91 cm)

Features:

• The corner thickness of the skateboard park structures consist of 2" x 2" x 3/16" thick (5 cm x 5 cm x 0.5 cm thick) aluminum.
• The surface of the aluminum structures is covered by 3/4" (1.9 cm) grey polyboard sheets.
• The polyboard seams are joined by inoxydable 1/8" (0.3 cm) steel plates which are fixed to the aluminum structure.
• For better accessibility we have installed a 1/8" x 6" x 48" (0.3 cm x 15 cm x 122 cm) aluminum plate at the base of the structure.
• The mounting hardware for the polyboard are inoxydable steel with counter sunk anti-theft 1/4" (0.6 cm) bolt with a 1/4" (0.6 cm) nylon nut.
• The mounting hardware for the aluminum structures are 3/8" (0.95 cm) zinc hexagonal heads with a 3/8" (0.95 cm) whiz lock nut.

Freight and installation not included.

.
